PERFECTING THE PANORAMIC: STEP BY STEP





• Arrive Early   In order to get through this checklist, you’ll need the extra setup time before the light changes!
• Use a Tripod   A panoramic is comprised of a series of adjacent photographs stitched together in software to form a single wide-angle image. In the stitching process, the software does its best to match adjacent images seamlessly, but there is usually a bit of twisting required to match them perfectly. This requires cropping the final panoramic. Unless the individual images are shot with the camera absolutely level, the twisting and subsequent cropping may get to the point where much of the scene is lost.
• Level the Tripod and Camera  I have a bubble level on the base of my tripod which I use to get the legs levelled up first. I also use a bubble level that slips onto the camera’s hot shoe, which I use to do fine levelling adjustments. The reason for using both is that uneven legs may give me the impression that I have a level camera at one position, using the hot shoe level. But as I pan, I would likely see the level drift off centre. Once you have tweaked both the legs and the pan/tilt head, try panning through the intended range of your panoramic to ensure you have optimized both.
• Set the Camera to Manual (M) mode   Imagine you’re shooting a panoramic made up of photos that have dramatically different light content. In any mode but Manual, each photo would be exposed differently because the light metering system built into your camera tries to set the exposure automatically to an average 18% grey level. In this scenario, the panoramic wouldn’t look right because the inherently darker scenes would be forced to look lighter compared to the others, resulting in a patchy-looking result. Sure, you could try matching the exposures in software before stitching, but it’s easier to get it right in the camera. I pan the entire scene first, using the digital meter to set a shutter speed/aperture combination that averages a normal exposure. As a result, some shots will be over-exposed slightly, others under. As long as the histograms for all photos don’t show any clipping at the black or white points, you’re OK.

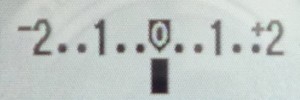

  The camera’s digital light meter. Zero is optimal exposure.

•  Set the Camera ISO setting to a fixed value  Some cameras have Auto ISO setting. Per the last point about exposure, ensure you choose a fixed value (eg. 200) rather than Auto.
• Set the Camera to manual focus  Most SLR lenses have a switch allowing you to disengage the motor that automatically focuses your lens before you take a shot. For panoramics, set it to manual focus (MF). The reason for this is that as you pan to take each of the shots, the camera may refocus on something close in or far away, especially if there’s an object in one of the shots that is prominent. That could result in uneven focus across the panoramic. Pick one focus setting that works for the whole panoramic and leave it there.
• Take the Camera out of Auto White Balance  Similar to the argument in the last two points above, you don’t want the camera to change the colour balance as you pan because of changing content. Choose one of the presets instead of Auto. For instance, if shooting on an overcast day, use the Cloudy Bright setting. If shooting an indoor scene under fluorescent lights, use the Fluorescent setting. If you have access to a photo editing program that allows white balance adjustment, don’t worry about what preset you choose, because you can correct all the shots by the same amount if the preset you chose results in wonky colour.
• Overlap the Photos  Panoramic software uses artificial intelligence to look for similarities between adjacent shots then join those features seamlessly. In order to provide those reference points, you need to provide overlap in content between adjacent shots. I typically overlap by 25%. If I start my panoramic on the left end then take subsequent shots by panning left to right, this means that my second photo contains the rightmost 25% of the first photo. I’ve made marks on my tripod head that tell me how far to pan before taking the next shot while allowing 25% overlap. I have marks for both landscape format and portrait formats. But, of course, those marks only work for one focal length, which brings me to the next point….
• Use a “Normal” focal length  For a consumer digital SLR with an APS-C sensor, normal focal length is about 33mm. Anything shorter is considered wide angle. The wider you go, the more barrel or pincushion distortion will be introduced. This may make it harder for the stitching software to match the photos without twisting the photos to counter this effect. The more twisting, the more cropping of the final panoramic you’re likely to have to do. Of course, you could use a longer focal length without this concern, but remember that depth of field reduces with focal length.  I use a 35mm prime lens for panoramics, adapted from an old film camera.
• Choose the Right Content  I like shooting sky panoramics. I found out the hard way that sometimes the stitching software will not work properly with some content – particularly soft images with few hard edges. Some sunset clouds fit that description. Sometimes, it helps to include some hard edge detail (like treetops) to assist in the stitching. You can always crop it out later.

• Choose the Right Software  I find that the ‘premier’ photo editing package gives too many choices when creating panoramics. You have to try them all to find out which one works best, but my experience is that I generally don’t like any of the results. On the other hand, a cheap and cheerful package sometimes works better and with less fuss. I particularly like ArcSoft’s Panorama Maker, which came bundled free with my point-and-shoot camera.

3 overlapping images stitched together, before cropping. Note how the software has to distort the images to make them match up.
